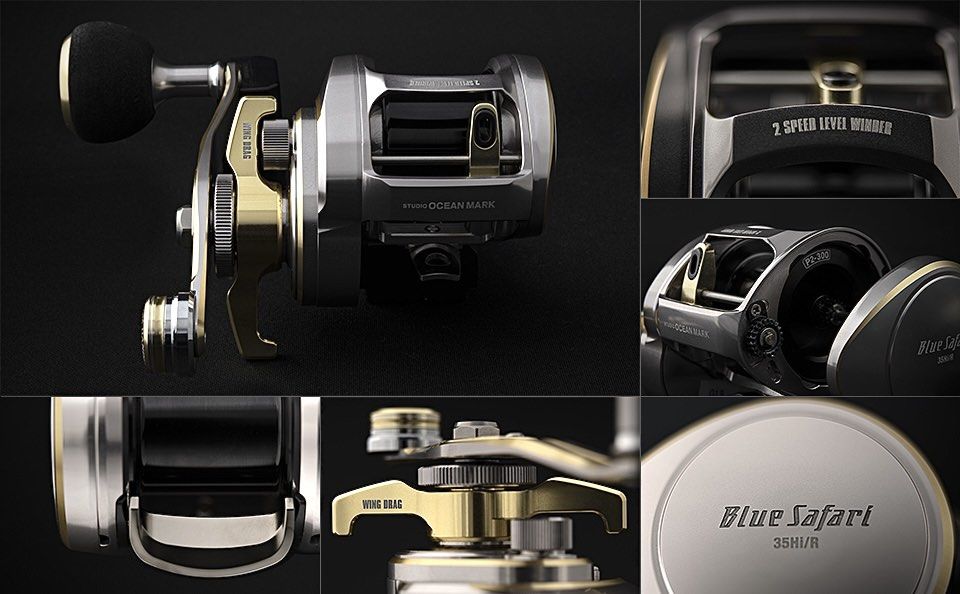

It is a new drag system that is easy to set like a star drag and easy to understand the drag value like a lever drag. Drag is adjusted in 4 stages with a mechanism that operates the drag by moving the wing back and forth. The amount of change is about 400 to 500g per click from where the initial drag value is adjusted with the preset knob.
[How to set the drag] When setting the weakest value (4 steps up to MAX)
❶ Tilt the wing drag forward.
❷ Turn the preset knob to set the initial drag value.
❸The drag value can be adjusted step by step by tilting the wing drag to the back.
[How to set the drag] When setting the weakest value (4 steps up to MAX)
❶ Tilt the wing drag forward.
❷ Turn the preset knob to set the initial drag value.
❸The drag value can be adjusted step by step by tilting the wing drag to the back.
■ When setting the value in the middle (2 steps to MIN, 2 steps to MAX)
❶ Move the wing drag to the center as shown in the picture.
❷ Turn the preset knob to set the initial drag value.
❸ When the wing drag is pushed forward, the drag value decreases, and when pushed backward, the drag value increases.

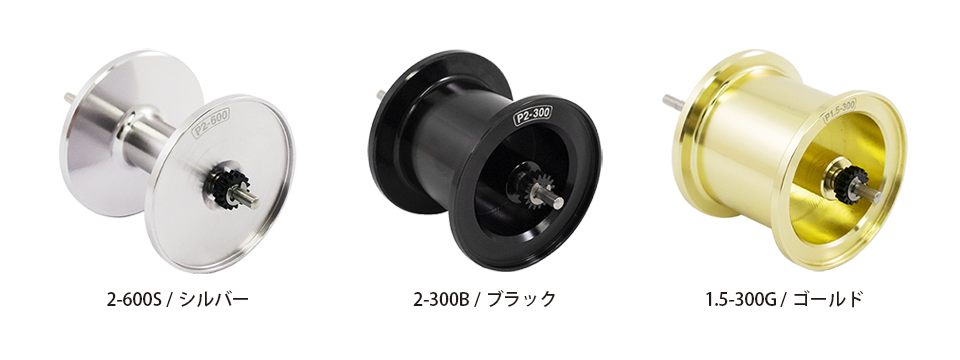

3 types of spool
Adopted a system that can easily replace the spool with one screw on the gear box side. With the following 3 types of spools, it corresponds to almost all offshore scenes in the near sea. It is possible to change the spool without changing the reel even on a relay ship where the fishing items change on one boarding.
1. Standard spool … PE2 No. 300m. It covers light jigging such as blue fish jigging in the near sea. 2. Deep groove spool … PE2 No. 600m. Deep groove design for mid-deep sea jigging. * Sold separately 3. Shallow groove spool … PE1.5 No. 300m. For lighter fishing than standard spools. * Sold separately
[Spool replacement method] Simply loosen the screw on the gear box side to easily remove the palming cup and replace the spool.
Winding power inherited from Blue Heaven
Aluminum machine cut gear box & frame, gear adopts high module gear inherited from Blue Heaven. Strong hoisting power is achieved with excellent body rigidity and high module gear that does not distort even when drag load is applied. The transmission efficiency of the hoisting force has been improved by 9% * compared to the No. 300 class of other companies . * Numericalize the handle input load and compare the spool rotation force at that time
2 speed level winder
Uses an interlocking level winder. In addition, the level winder has been made 2-speed. The 2-speed level winder repeats tight winding and twill winding in a round trip, so you can fight with fish without worrying that the line will not bite even under high load.
wide spool
BS35 uses a wide spool. By widening the spool, there is little change in the amount of winding due to water depth, enabling jig action as imaged.
